Housing Material:Polyamide66(PA66),flame-retardant to UL 94-v2 Working thermoplastic

Clamp Unit: steel plate with copper plate,tin-plated Stainless spring steel

Strip Length:11mm /0.43 in.

Rated 600V Max.for building wiring and 1000v Max. in lighting flxtures / luminaries and signs

Can be supplied under private label packaging

Download

Product details

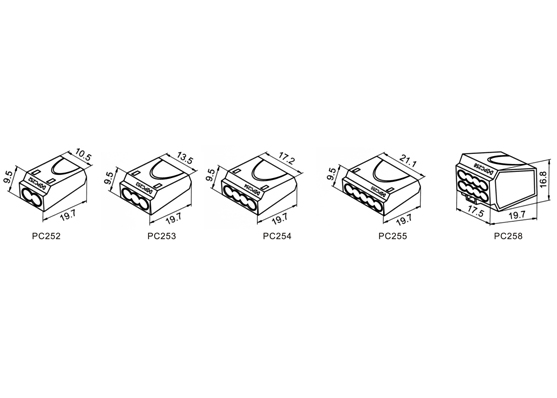

Model	Order Number	Poles	Color	Electrical Ratings	Packing	Download
PC252	PC252	2	Red	IEC:24A,450V,T110℃,1-2.5,mm²,Sol UL:600V,105℃(221℉),#22-#12AWG,Sol Cu	500 Pcs/Bag 5000 Pcs/Ctn	Drawing
	PC252X
PC253	PC253	3	Orange	IEC:24A,450V,T110℃,1-2.5,mm²,Sol UL:600V,105℃(221℉),#22-#12AWG,Sol Cu	500 Pcs/Bag 5 000 Pcs/Ctn	Drawing
	PC253X
PC254	PC254	4	Yellow	IEC:24A,450V,T110℃,1-2.5,mm²,Sol UL:600V,105℃(221℉),#22-#12AWG,Sol Cu	500 Pcs/Bag 5 000 Pcs/Ctn	Drawing
	PC254X
PC255	PC255	5	Grey	IEC:24A,450V,T110℃,1-2.5,mm²,Sol UL:600V,105℃(221℉),#22-#12AWG,Sol Cu	500 Pcs/Bag 5 000 Pcs/Ctn	Drawing
	PC255X
PC258	PC258	8	Black	IEC:24A,450V,T110℃,1-2.5,mm²,Sol UL:600V,105℃(221℉),#22-#12AWG,Sol Cu	250 Pcs/Bag 2500 Pcs/Ctn	Drawing
