Current location: home pageProducts - Terminal table

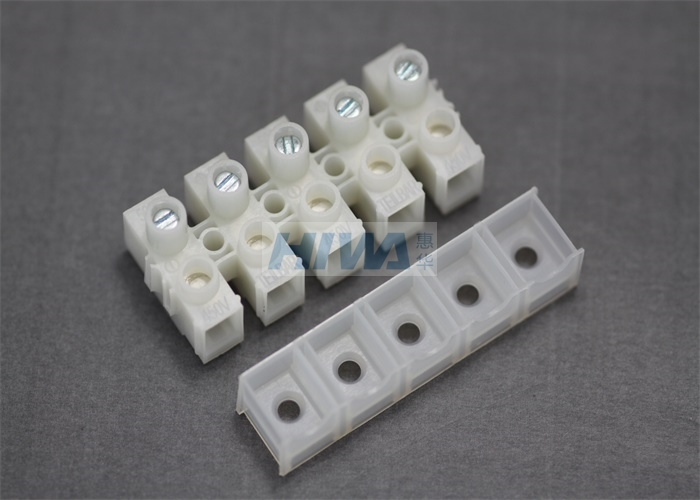

  • Product name: 250/260 SERIES
  • Data name: 250/260 SERIES_Terminal table
Raised base
Pluggable connector with excellent electrical contact
Vertica/horizontal mounting
Available whit protection sheath
Natural as standard color
Working temperature -40℃ to T100℃
Voltage450v
Ampete 250:6A 260:10A
Download

Product details

型号
Model

适用电源

螺丝
Screw

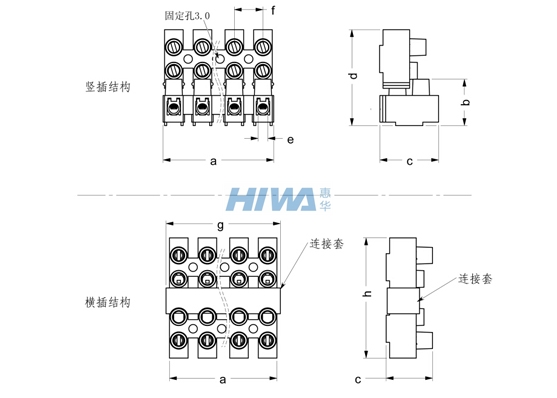

尺寸 Dimensions(mm)

Download

Wire Range

 A B CD E FG H
2502.5mm²M2.6×5.4116.516.220.533.53.210118.942Drawing
2604mm²M3.5×7.2139.518.023.537.154.21214248Drawing
