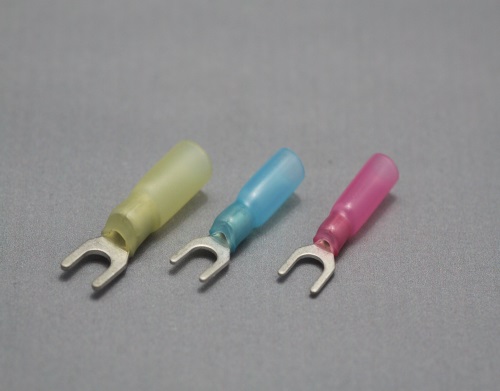

- Product name: Heat Shrink Spade Terminals
- Data name: Heat Shrink Spade Terminals_Heat Shrink Wire terminals
Shrink ratio: 3:1
Excellent conductivity property
High transparency, High tensile strength
Excellent stretch and mechanical damage resistance
High elasticity assures steady performance
Water proof and moisture resistance
Operating temperature: -55℃～125℃
Product details

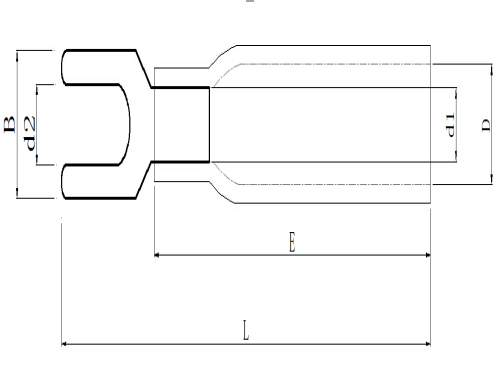

Product Code | D | d1 | d2 (mm) | B | E | L (mm) |
| Conductor | Wall of Copper Terminals(mm) |
| HS-SVS1.25-4 | 4.8 | 1.6 | 4.3 | 8.1 | 21 | 20 | Red | 0.5-1.5mm2 (22-18AWG) | 0.7 |
| HS-SVS1.25-5 | 4.8 | 1.6 | 5.3 | 9.5 | 21 | 30 | |||
| HS-SVS2-4 | 5.8 | 2.2 | 4.3 | 8.1 | 21 | 30 | Blue | 1.5-2.5mm2 (16-14AWG) | 0.8 |
| HS-SVS2-5 | 5.8 | 2.2 | 5.3 | 9.5 | 21 | 30 | |||
| HS-SV5.5-4 | 6.8 | 3.4 | 4.3 | 9.0 | 25 | 34 | Yellow | 4-6mm2 (12-10AWG) | 1.0 |
| HS-SV5.5-5 | 6.8 | 3.4 | 5.3 | 9.0 | 25 | 34 | |||
| HS-SV5.5-6 | 6.8 | 3.4 | 6.3 | 9.0 | 25 | 34 |
