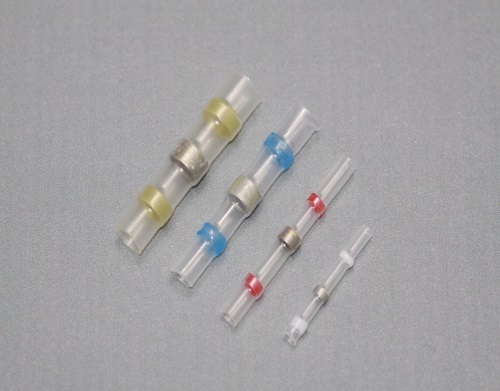

  • Product name: HS-SST-200 Shrink Soldersleeve
  • Data name: HS-SST-200 Shrink Soldersleeve_Heat Shrink Wire terminals
Shrink ratio: 2:1
Waterproof for wiring splices
Transparent sleeve provides visual inspection
High elasticity assures steady performance
Easy control of soldering process
Operating temperature: -55℃～125℃
Minimum shrink temperature: 140℃
Download

Product details

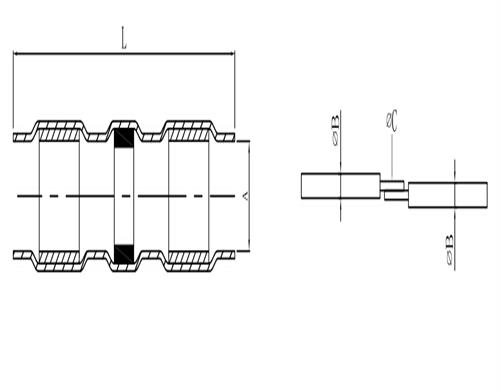

Product Code


Color
L(mm)
Qty
Φ A Min (mm)		 Wire Dimensions(mm)


Cable size AWG (mm2 )

B Min B Max
C Max		 C Min
HW-SST-200- 01 White 26 2 1.7 0.4 1.7 0.76 26-24(0.25-0.5)
HW-SST-200- 02 Red 40 2 2.7 1.3 2.7 1.2 22-18(0.5-1.5)
HW-SST-200- 03 Blue 40 2 4.5 1.8 4.5 2.0 16-14(1.5-2.5)
HW-SST-200- 04 Yellow4026.02.86.03.412-10(4.0-6.0)
