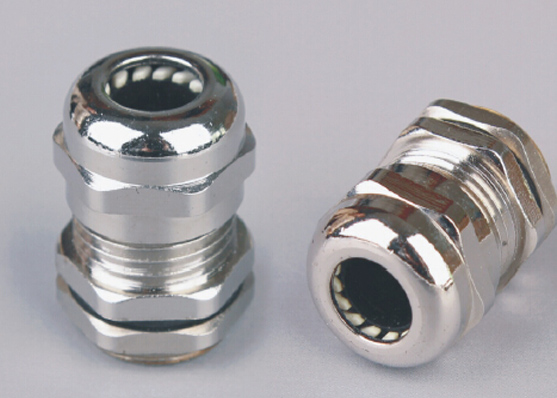

- Product name: METALLIC WATERPROOF CABLE CONNECTOR M TYPE
- Data name: METALLIC WATERPROOF CABLE CONNECTOR M TYPE_Cable gland
Material：Brass plated with nickel,bylon PA66 certificatde by ul
Weather strip：Nitrile butadiene rubber(NBR),Weathering-resistance rubber(EPDM)
Working Temperature：-40℃to 100℃,instantance up to 120℃
Characteristics：IP68(Rotate the part)
Product details

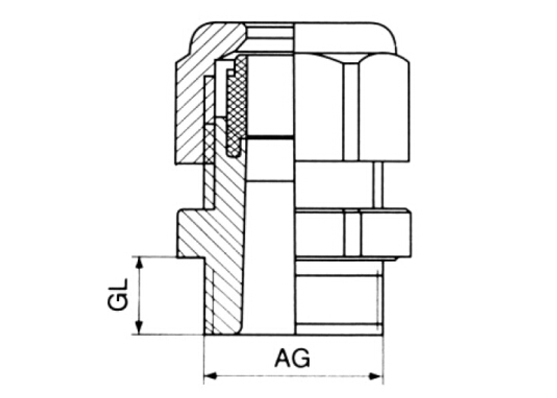

Model | Cable Range(mm) | Thread O.D AG(mm) | Thread Length GL(mm) | Spanner Size(mm) | Download |
| M12×1.5 | 3~6.5 | 12 | 6 | 14 | Drawing |
| M12×1.5 | 2~5 | 12 | 6 | 14 | Drawing |
| M16×1.5 | 4~8 | 16 | 7 | 17 | Drawing |
| M16×1.5 | 2~6 | 16 | 7 | 17 | Drawing |
| M18×1.5 | 5~10 | 18 | 7 | 20 | Drawing |
| M18×1.5 | 3~7 | 18 | 7 | 20 | Drawing |
| M20×1.5 | 6~12 | 20 | 7.5 | 22 | Drawing |
| M20×1.5 | 5~9 | 20 | 7.5 | 22 | Drawing |
| M22×1.5 | 10~14 | 22 | 7.5 | 24 | Drawing |
| M22×1.5 | 7~12 | 22 | 7.5 | 24 | Drawing |
| M25×1.5 | 10~14 | 25 | 8 | 30 | Drawing |
| M25×1.5 | 8~12 | 25 | 8 | 30 | Drawing |
| M32×1.5 | 16~21 | 32 | 9 | 40 | Drawing |
| M32×1.5 | 13~18 | 32 | 9 | 40 | Drawing |
| M40×1.5 | 22~32 | 40 | 9 | 50 | Drawing |
| M40×1.5 | 20~26 | 40 | 9 | 50 | Drawing |
| M50×1.5 | 32~38 | 50 | 10 | 57 | Drawing |
| M50×1.5 | 25~31 | 50 | 10 | 57 | Drawing |
| M63×1.5 | 37~44 | 63 | 11 | 64 | Drawing |
| M63×1.5 | 29~35 | 63 | 11 | 64 | Drawing |
