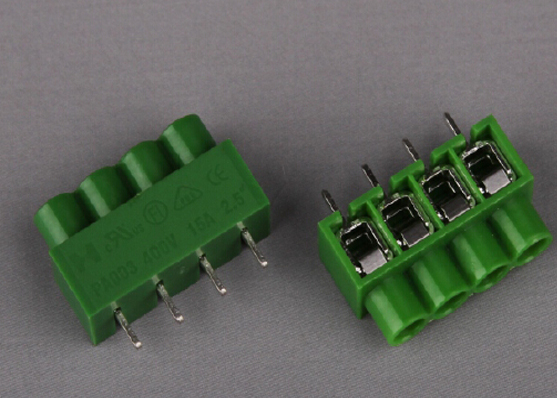

  • Product name: PCB TERMINAL BLOCK(WITH VERTICALL SOLDER PIN)
  • Data name: PCB TERMINAL BLOCK(WITH VERTICALL SOLDER PIN)_Terminal table
Current：15A（UL），24A（IEC）
Voltage：300V（UL），400V（IEC）
Wire Range：18-14AWG，Cu（UL），0.5-2.5mm²（IEC）
Strip：6.5mm/0.26in.
Temperature：105℃（UL），-25℃toT120℃（IEC）
Pin Spacing：5mm
Housing Material：Polyamide 66,Flame-retardant grade
Terminal：Tinned brass,with square insert hole
Screws：M3.0×5.35mm,zinc platde
Wire Protector：Stainless steel spring
Download

Product details

Cat,No.

Poles

Length

Download

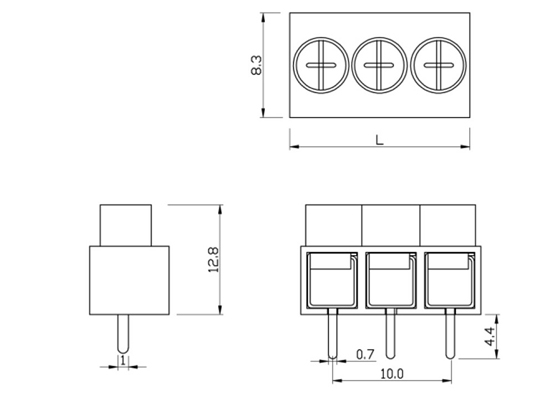

PA003-2P211.5mmDrawing
PA003-3P316.5mmDrawing
PA003-4P421.5mmDrawing
PA003-5P526.5mmDrawing
PA003-6P631.5mmDrawing
PA003-8P841.5mmDrawing
