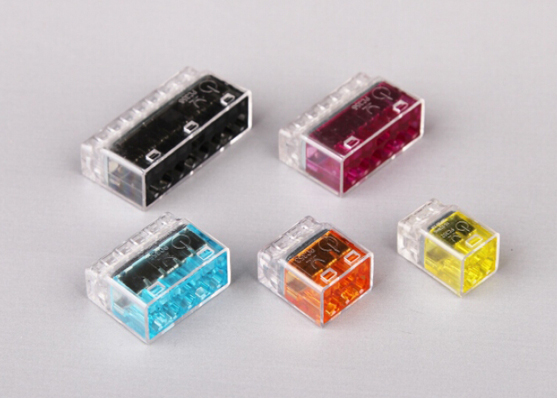

  • Product name: PUSH-IN WIRE CONNECTORS
  • Data name: PUSH-IN WIRE CONNECTORS_Home Decoration Terminal Series
Accept solid and stranded conductors up to 2.5mm²/NO.22-NO.12AWG
Color coded for easy indentification
compact size design perfect for tight spaces
Test slot in front permits easy testing with votage tester
Excellent for OEM lighting manufacturing,junction boxes,control panels,security / alarm systems,prefabricated wiring systems and lighting retrofit
Housing:Polycarbonate(PC),flame-retardant to UL 94-v2 or UL 94-V0
Working temperature:T110℃(IEC),105℃/221℉(UL)
Clamp Unit:Copper,tin-plated;Stainiess spring steel;steel frame,zinc-plated
Strip Length:11mm /0.43 in.
Rated 600V Max.for building wiring and 1000v Max. in lighting flxtures / lumlnarles and signs
Can be supplied under private label packaging
Download

Product details

Model

Poles

Color

Electrical Ratings

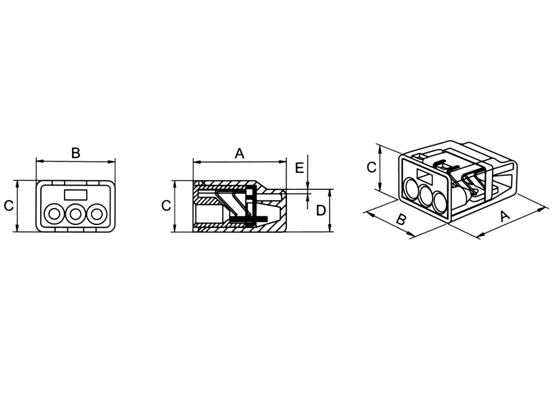

Dimensions(mm)

Packing

Download

A

B

C

D
PC3522YellowIEC:24A,450V,T110℃
UL:600V,105℃(221℉)		19.011.7510.458.70500 Pcs/Bag
5000 Pcs/Ctn		 Drawing
PC3533OrangeIEC:24A,450V,T110℃
UL:600V,105℃(221℉)		19.015.9010.458.70400 Pcs/Bag
4000 Pcs/Ctn		Drawing
PC3544ClearIEC:24A,450V,T110℃
UL:600V,105℃(221℉)		19.020.0510.458.70300 Pcs/Bag
3000 Pcs/Ctn		Drawing
PC3555BlueIEC:24A,450V,T110℃
UL:600V,105℃(221℉)		19.024.2010.458.70300 Pcs/Bag
3000 Pcs/Ctn		Drawing
PC3566PurpleIEC:24A,450V,T110℃
UL:600V,105℃(221℉)		19.028.3510.458.70250 Pcs/Bag
2500 Pcs/Ctn		Drawing
