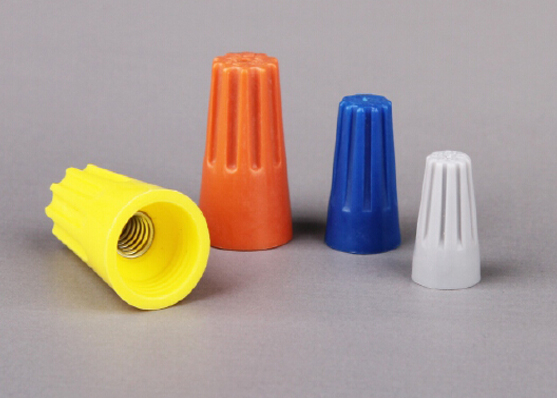

- Product name: SCREW-ON WIRE CONNECTORS
- Data name: SCREW-ON WIRE CONNECTORS_Wire connector
Tough thermoplastic,UL94v-2 flame-retardant shell rated at 105℃
Rated at 600v max.for building wiring and 1000v max.lighting fixture/luminaries and signs
Enable save more cost with no compromise to quality
Available in socket tools for easy installation fo connectors
Can be supplied under private label packging
Product details
Model | Dimensions(mm) | Download | ||
| A | B | C | ||
| P1 | 6.50 | 8.60 | 15.20 | Drawing |
| P2 | 7.10 | 9.90 | 17.70 | Drawing |
| P3 | 9.70 | 12.70 | 22.00 | Drawing |
| P4 | 11.00 | 14.00 | 24.60 | Drawing |
| P6 | 13.10 | 16.30 | 26.50 | Drawing |
Model | Color | Wire Range | Electrical Ratings | Approvals | Packing | Download | ||
| P1 | Orange | #22-#14 AWG,Cu | 300Volt Max. 105℃(221℉) |  |  |  | 1000Pcs/Bag 20000 Pcs/Ctn | |
| P2 | Orange | #22-#14 AWG,Cu | 300Volt Max. 105℃(221℉) |  |  |  | 1000Pcs/Bag 10000 Pcs/Ctn | |
| P3 | Orange | #22-#14 AWG,Cu | 600Volt Max. 105℃(221℉) | | | | 500Pcs/Bag 5000 Pcs/Ctn | |
| P4 | Orange | #20-#10 AWG,Cu | 600Volt Max. 105℃(221℉) | | | | 500Pcs/Bag 5000 Pcs/Ctn | |
| P6 | Red | #20-#10 AWG,Cu | 600Volt Max. 105℃(221℉) | | | | 500Pcs/Bag 5000 Pcs/Ctn | |
