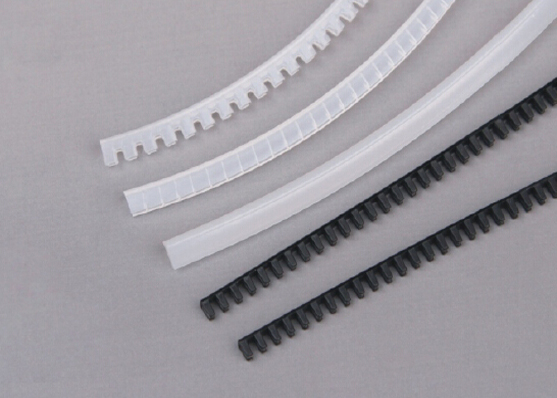

- Product name: MOVABLE BUSHINGS KG-XN SERIES
- Data name: MOVABLE BUSHINGS KG-XN SERIES_Cable protection
Movable bushings is applide to the panel edge and is easily installed without the need for adhesives.The colse-fitting provides effective protection fo cables by preventing any chafing.
Movable bushing is used to rpotect cables routed through sharp-edge cut-out sections.
Color:Natrue color
Product details

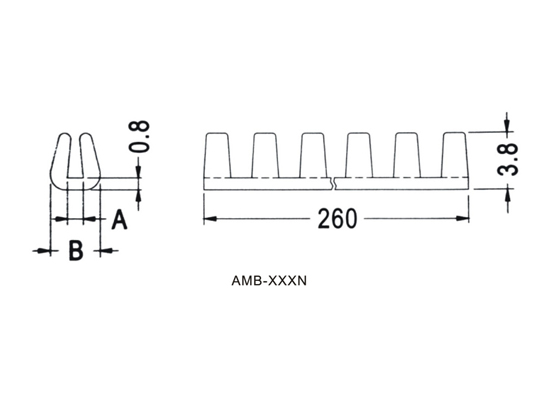

Model | A(mm) | B(mm) | Chassis Thickss(mm) | Material | Packing | Download |
| KG-006N | 0.6 | 3.1 | 0.5~0.7 | PA66 | 260mm/pcs 100pcs/bag | Drawing |
| KG-008N | 0.8 | 3.1 | 0.7~0.9 | Drawing | ||
| KG-010N | 1.0 | 3.3 | 0.9~1.1 | Drawing | ||
| KG-012N | 1.2 | 3.5 | 1.1~1.3 | Drawing | ||
| KG-014N | 1.4 | 3.65 | 1.3~1.5 | Drawing | ||
| KG-016N | 1.6 | 3.9 | 1.4~1.7 | Drawing | ||
| KG-020N | 2.0 | 4.3 | 1.8~2.0 | Drawing | ||
| KG-030N | 3.0 | 6.2 | 2.5~3.0 | Drawing |
