- Product name: RIGHT ANGLE STRAIN RELIEF BUSHING
- Data name: RIGHT ANGLE STRAIN RELIEF BUSHING_Cable protection
Material:UL approved Nylong 66,94v-2
Color:Black

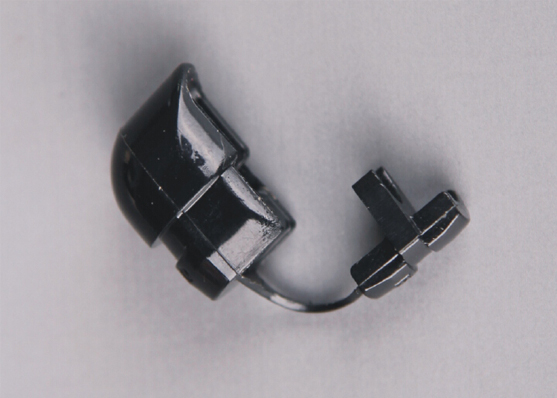

Assemble according photoes sequence above
Protect power cable from chassis
L type design facilitafe power cord runs out
Product details

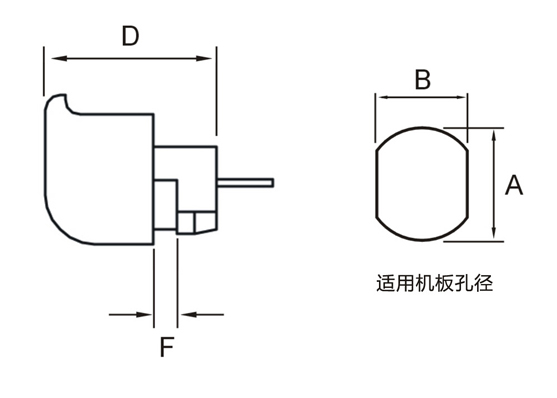

Model | Cross | Wires Accommodate | Mounting Hole | Part L. D(mm) | Available Thickness F(mm) | Packing | Download | |||
UL线 | 尺寸(mm) | A(mm) | B(mm) | |||||||
| SR-F42L | Flat | SPT-1 | 3×5.6 | 12.7 | 11.8 | 17.7 | 1.8~2.6 | 100pcs | Drawing | |
| SPT-2 | 3.8×7.1 | |||||||||
| SR 15-1 | Round | SV&SVT2C#18 | 6.4 | 12.7 | 11.4 | 17.5 | 2.5 | 500pcs | Drawing | |
| SV&SVT3C#18 | 6.7 | 12.7-13.1 | Drawing | |||||||
| HDP 2C#18 | 6.9 | 12.7 | Drawing | |||||||
| HDP 2C#16 | 7.4 | 12.7-13.1 | ||||||||
